Implement the "APEX Util" Button

The APEX Util button retrieves and displays the session state values stored using apex_util.get_session_state().

Implementation Steps

1. Set the Button Action to Defined by Dynamic Action.

2. Create a Dynamic Action with the following attributes:

• Event: Click

• Action: Execute PL/SQL Code

• PL/SQL Code:

DECLARE

    v_fname VARCHAR2(100);

    v_lname VARCHAR2(100);

BEGIN

    v_fname := apex_util.get_session_state('P1_FNAME');

    v_lname := apex_util.get_session_state('P1_LNAME');

    apex_debug.info('Stored First Name: ' || v_fname);

    apex_debug.info('Stored Last Name: ' || v_lname);

END;

This logs the stored values in the APEX debug console for troubleshooting and validation.

This tutorial demonstrated different ways to interact with text fields and buttons in Oracle APEX. The buttons use various techniques, including session state management, page submission, dynamic SQL execution, JavaScript manipulation, and APEX utilities.

Each method serves a specific purpose:

• Clear Session: Clears values from session state.

• Submit: Submits the page.

• APEX Submit: Stores values in session state before submission.

• Dynamic SQL: Executes SQL dynamically.

• Dynamic JS: Modifies text fields with JavaScript.

• APEX Util: Retrieves stored session values for debugging.

By combining these methods, you can create highly interactive and dynamic APEX applications.

EXAMPLE:

In this application we have two text fields and 6 buttons:

• Text fields

• FName

• LName

• Buttons

• Clear Session

• Submit

• Apex Submit

• Dynamic SQl

• Dynamic JS

• Apex Util

ClearSessions Button

• Create button named “Clear Session”

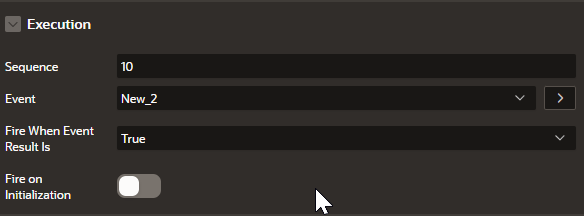

• Create a Dynamic Action

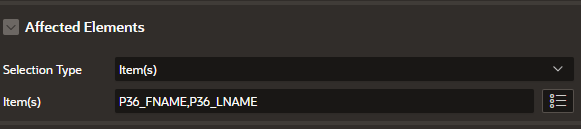

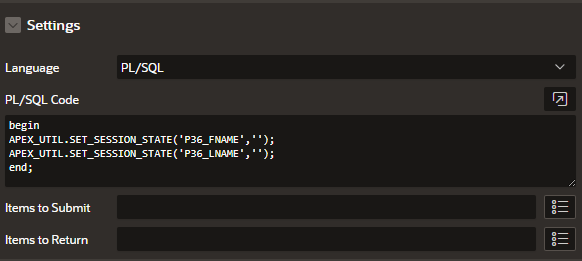

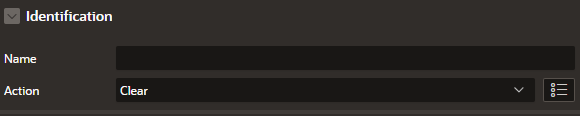

• On the true Branch

• Create a second True Branch

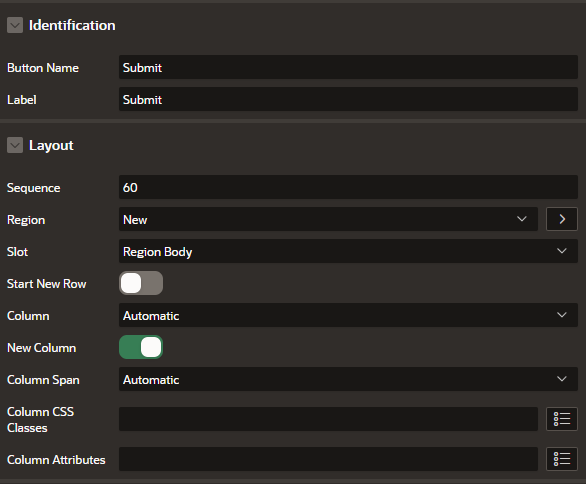

Via Submit Button

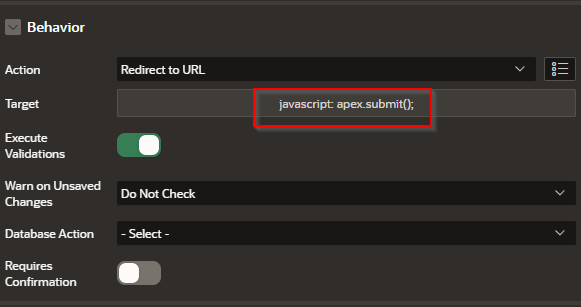

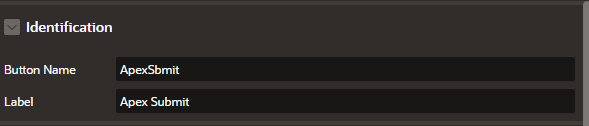

Via APEX Submit

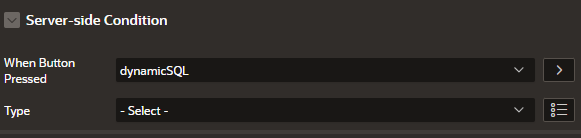

Via Dynamic SQL

• Create a Dynamic Action

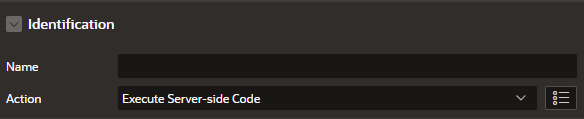

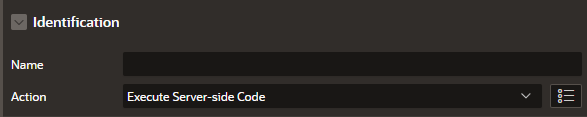

• In the true branch

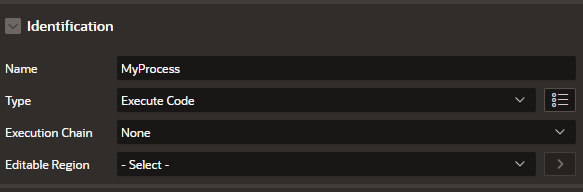

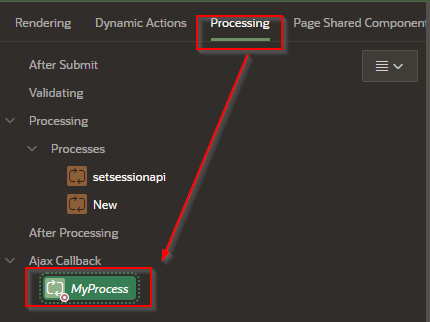

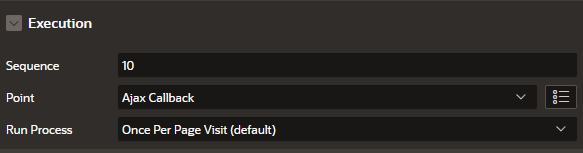

• In the Processing tab

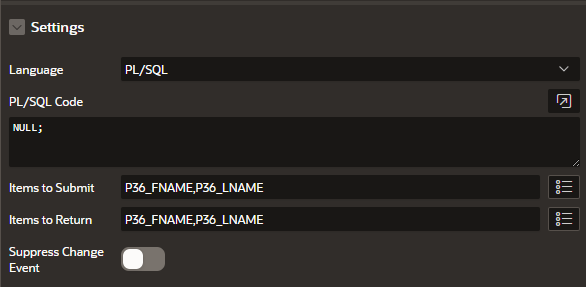

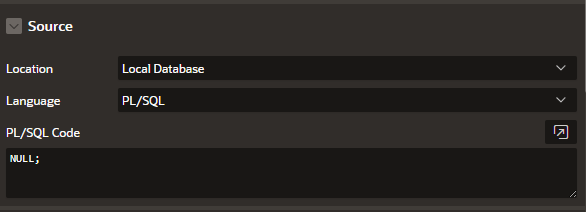

• With the following values

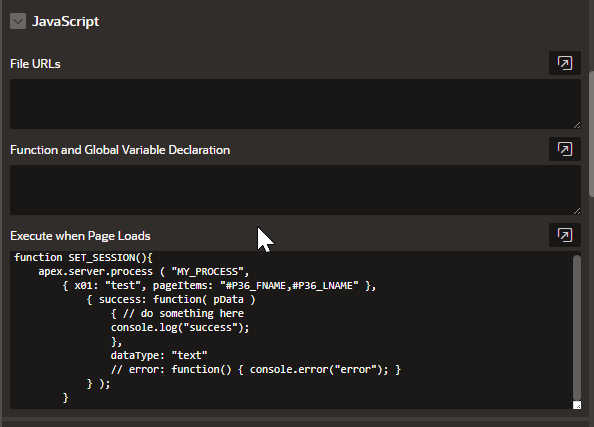

Via Dynamic JavaScript

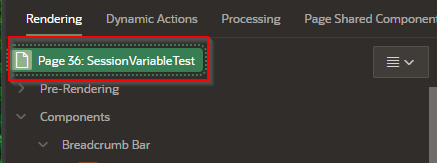

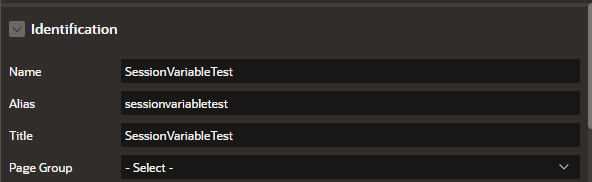

• At the page level

• Create a dynamic action

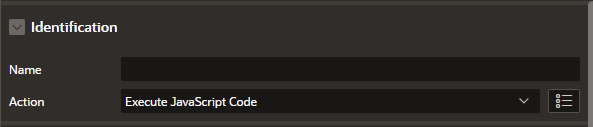

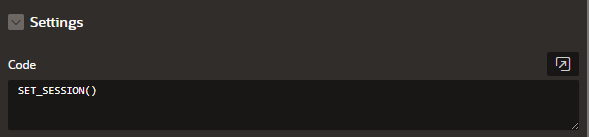

• In the True branch

Via App Util

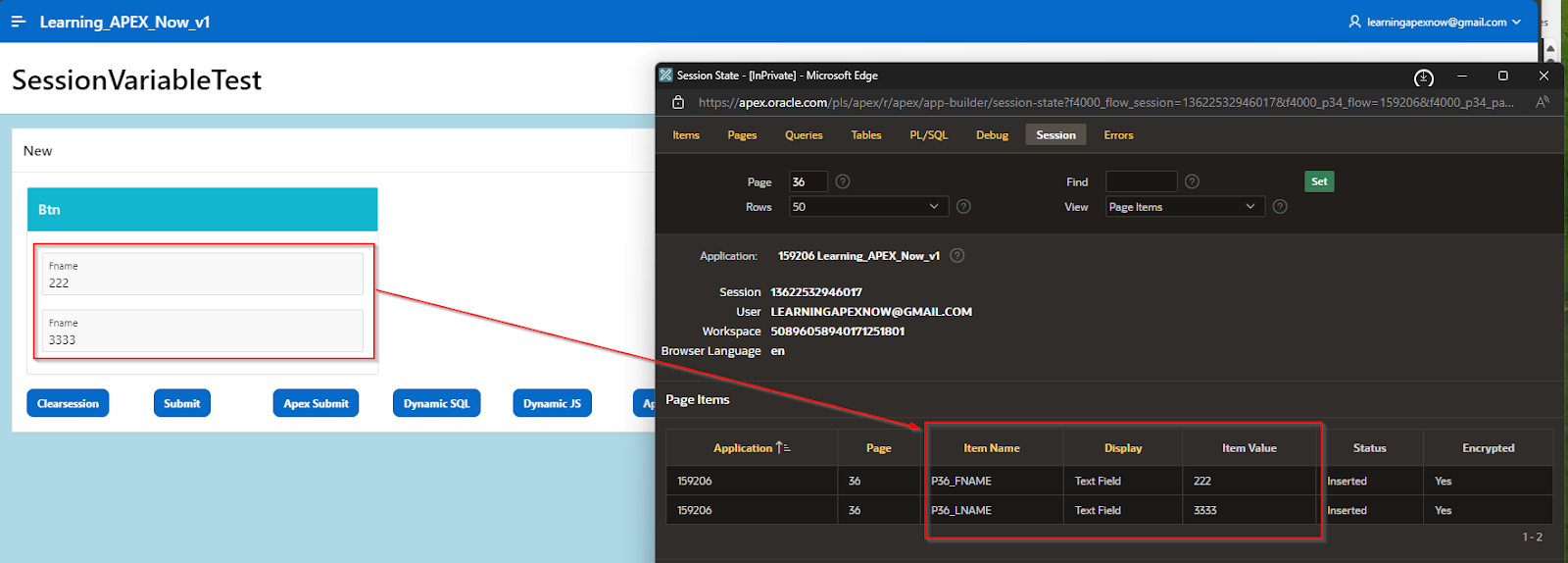

Viewing the session values

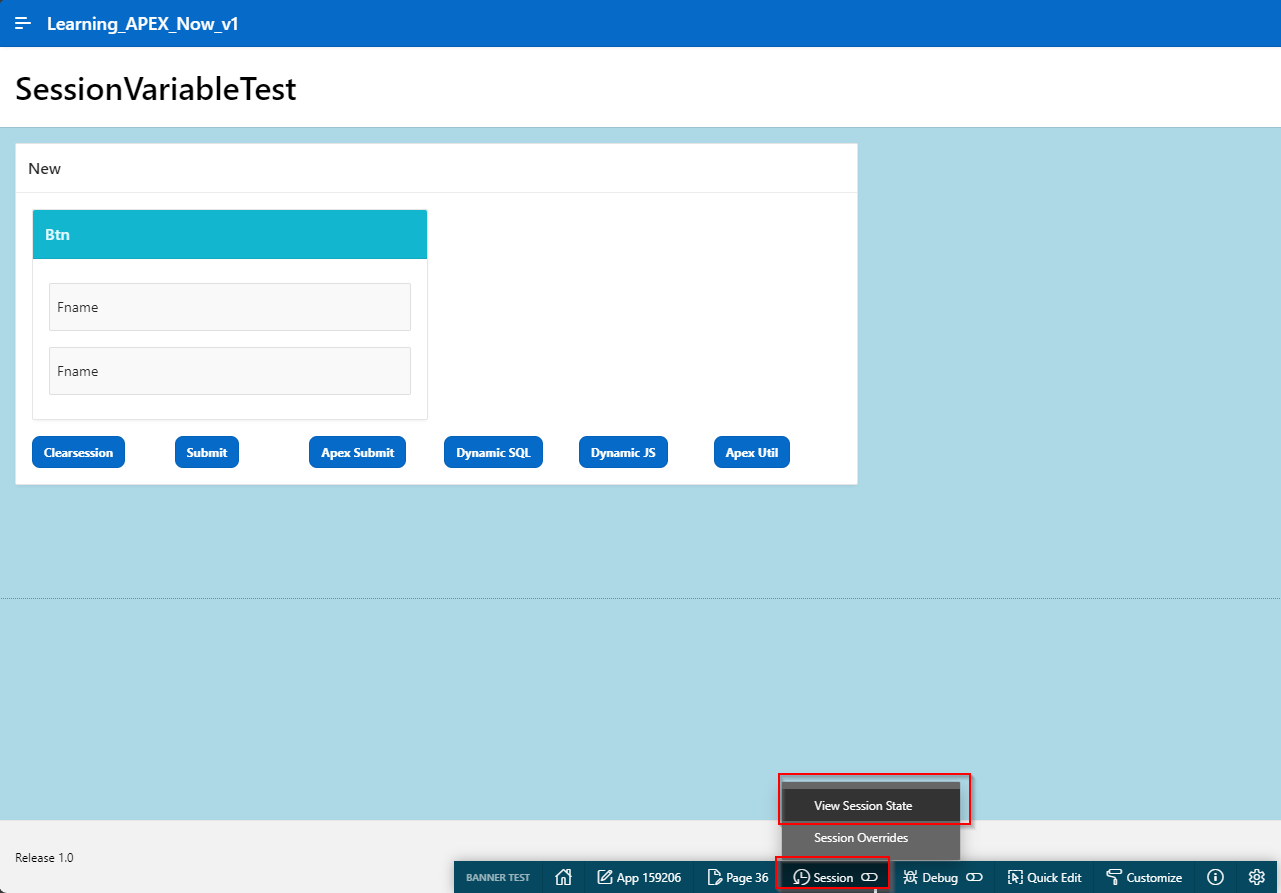

At the bottom of your page select Session > View Session variables

In this example the session variables are EMPTY, but had we had any data, it would display under Item Values.

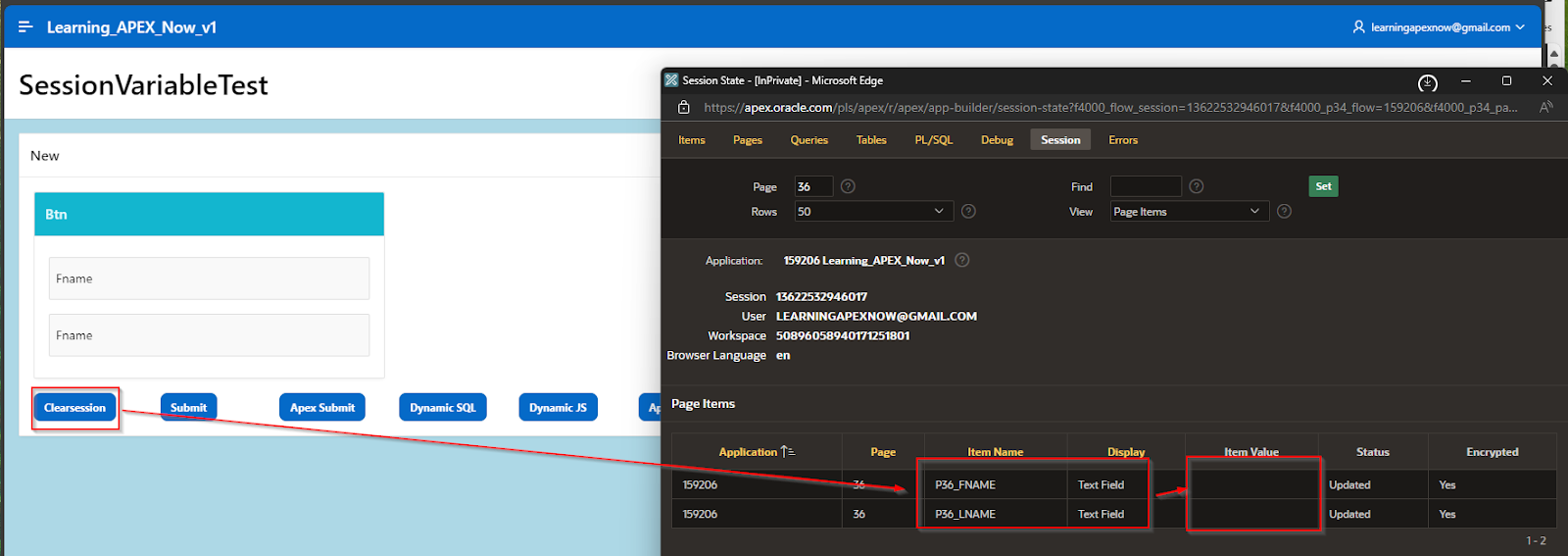

After the session is cleared
