How do I Display icons as part of tab headers

 Introduction

In Oracle APEX, enhancing the user interface is a key factor in building modern, intuitive applications. One simple yet effective way to improve navigation is by displaying icons as part of tab headers. Icons help users quickly identify the purpose of each tab at a glance, especially when working with a variety of content areas such as forms, reports, charts, and dashboards. With just a few adjustments to region properties or by adding a bit of HTML, you can easily customize your tab headers to include visually meaningful icons.

Displaying Icons as Part of Tab Headers in Oracle APEX

Using icons in tab headers enhances the visual appeal and usability of an Oracle APEX application. By incorporating icons, users can quickly identify sections based on visual cues rather than just text. This tutorial explains how to add icons to tab headers using different methods, including static HTML, CSS, and JavaScript.

Step 1: Creating the Tab Structure

1. Open your APEX application and navigate to the page where you want to add tabs.

2. In Page Designer, create a Static Content Region to act as the tab container.

3. Inside this region, create a List, Buttons, or Links to act as tab headers.

4. Assign Static IDs to these tabs, such as tab_1, tab_2, etc.

Example static HTML for tab headers:

<ul class="custom-tabs">

  <li><a href="javascript:void(0);" onclick="showTab(1)"><i class="fa fa-home"></i> Home</a></li>

  <li><a href="javascript:void(0);" onclick="showTab(2)"><i class="fa fa-user"></i> Profile</a></li>

  <li><a href="javascript:void(0);" onclick="showTab(3)"><i class="fa fa-cog"></i> Settings</a></li>

</ul>

Each <i> tag represents an icon using Font Awesome (which is included in APEX).

Step 2: Creating the Tab Content Regions

1. In Page Designer, create multiple Static Content Regions for tab content.

2. Assign Static IDs to each region (tab_region_1, tab_region_2, etc.).

3. Ensure all tab regions are within the same Parent Region for organization.

Example tab content:

<div id="tab_region_1">Welcome to the Home tab</div>

<div id="tab_region_2" style="display:none;">This is the Profile section</div>

<div id="tab_region_3" style="display:none;">Settings go here</div>

Step 3: Adding JavaScript for Tab Switching

Add this JavaScript in Page Designer > Execute When Page Loads to handle tab switching:

function showTab(tabNumber) {

    // Hide all tab regions

    $("[id^=tab_region_]").hide();

    // Show the selected region

    $("#tab_region_" + tabNumber).show();

    // Update active tab styling

    $(".custom-tabs li").removeClass("active");

    $(".custom-tabs li:nth-child(" + tabNumber + ")").addClass("active");

}

This function hides all tab content areas and displays only the selected one.

Step 4: Styling the Tabs with CSS

To ensure a visually appealing tab design with icons, add this CSS in Shared Components > CSS:

.custom-tabs {

    list-style: none;

    padding: 0;

    margin: 0;

    display: flex;

    border-bottom: 2px solid #ccc;

}

.custom-tabs li {

    padding: 10px 20px;

    cursor: pointer;

    background: #f1f1f1;

    margin-right: 5px;

    display: flex;

    align-items: center;

}

.custom-tabs li i {

    margin-right: 8px;

}

.custom-tabs li.active {

    background: #0077cc;

    color: white;

    font-weight: bold;

}

This ensures that:

• Icons appear before the text.

• The active tab is highlighted.

• Tabs are visually appealing and consistent.

Step 5: Using APEX Lists for Dynamic Tabs

Instead of manually coding the tab list, you can create a List component in Shared Components and reference it dynamically.

1. Go to Shared Components > Lists and create a new List.

2. Add list entries with the following format:

SELECT

    CASE

        WHEN list_name = 'Home' THEN '<i class="fa fa-home"></i> Home'

        WHEN list_name = 'Profile' THEN '<i class="fa fa-user"></i> Profile'

        WHEN list_name = 'Settings' THEN '<i class="fa fa-cog"></i> Settings'

    END AS list_label,

    list_target

FROM your_table;

3. Use this list as the source for a List Region.

4. Modify the List Template to include icons.

Alternative: Using Dynamic Actions Instead of JavaScript

1. Create a Dynamic Action triggered by clicking a tab.

2. Add an action to Hide all tab regions.

3. Add another action to Show the corresponding tab region.

4. Optionally, update the styling by adding a Set Style action.

This approach avoids custom JavaScript but requires manual setup for each tab.

Best Practices

• Use icons relevant to the tab content for better usability.

• Ensure icons and text are aligned properly by adjusting padding and margins.

• If using Font Awesome, make sure APEX includes the correct CSS.

• For larger applications, use Dynamic Actions instead of custom JavaScript for better maintainability.

• Test on different devices to ensure icons display correctly on mobile.

Adding icons to tab headers in APEX improves navigation and visual appeal. By using HTML, CSS, and JavaScript (or Dynamic Actions), tabs can be styled and function seamlessly, enhancing the user experience. Whether using static HTML, lists, or Dynamic Actions, icons provide a visually intuitive way to organize content.

EXAMPLE:

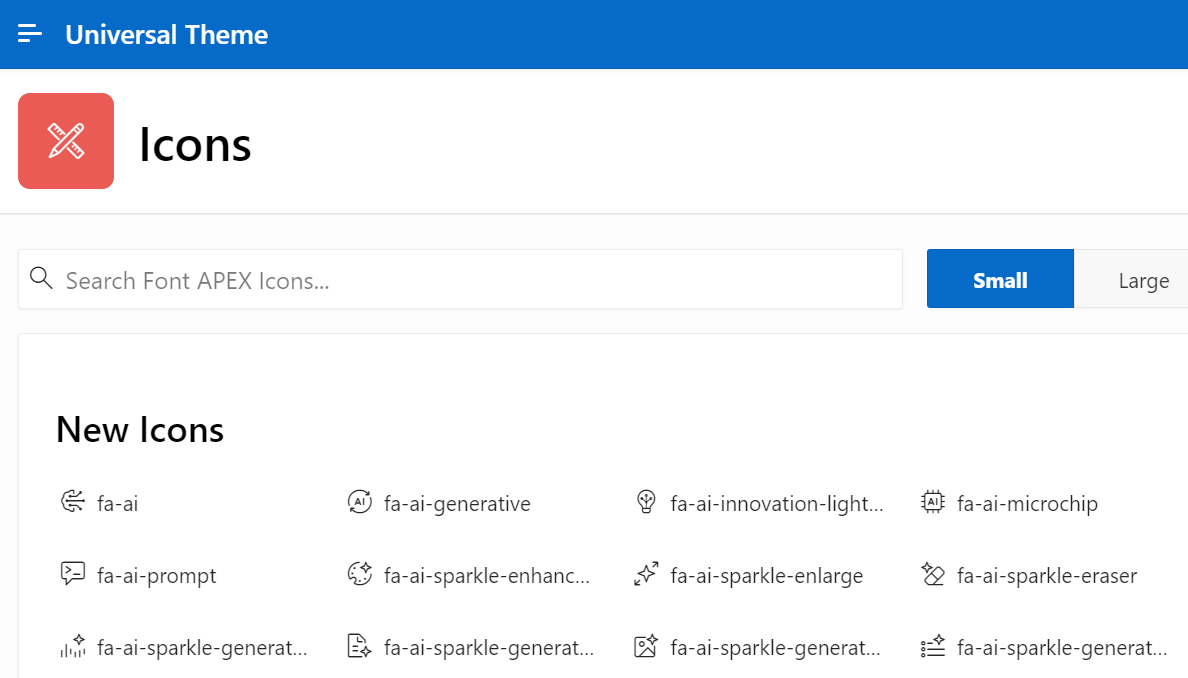

Step 1 - Navigate to : Icons - Universal Theme (oracle.com)

Step 2- Select the desired Icon

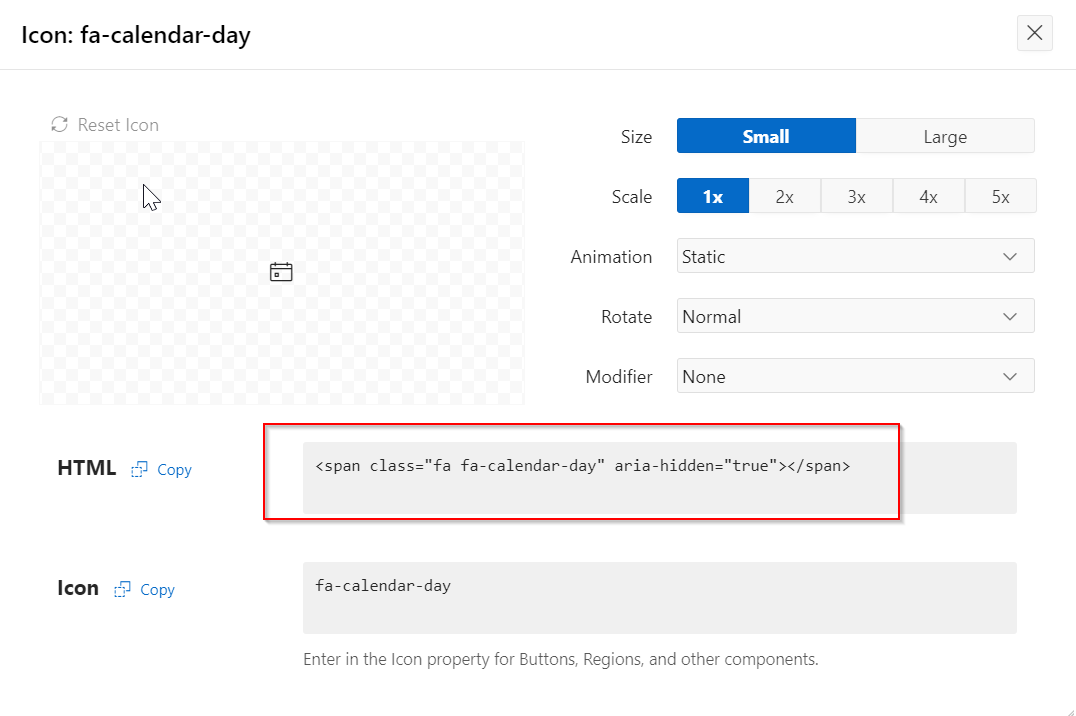

Step 3- Copy the icon “span” code

<span class="fa fa-calendar-day" aria-hidden="true"></span>

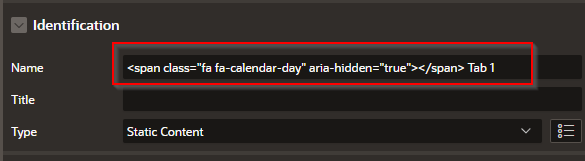

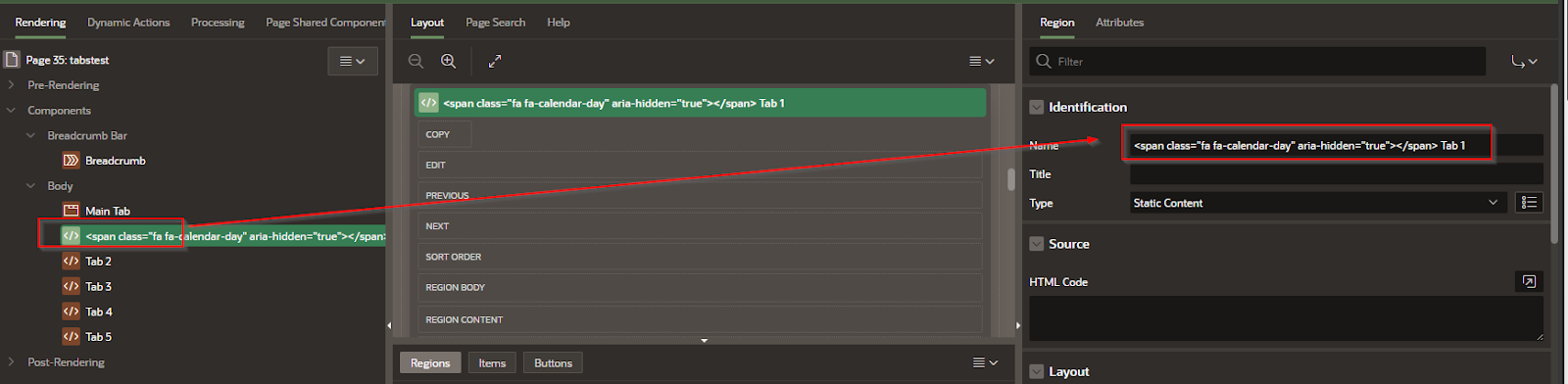

Step 4- place the code in the Name field of the region

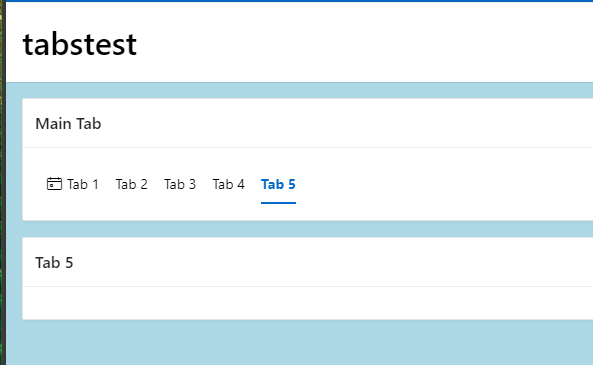

It should look something like this tab 1:

Conclusion
Adding icons to tab headers in Oracle APEX not only improves the overall aesthetic but also contributes to a more intuitive and user-friendly experience. Whether you're guiding users through multi-step forms or segmenting content into visual categories, the combination of icons and labels enhances usability. By leveraging APEX’s support for HTML and Font Awesome icons, you can implement this feature with minimal effort while making a significant impact on navigation clarity.
